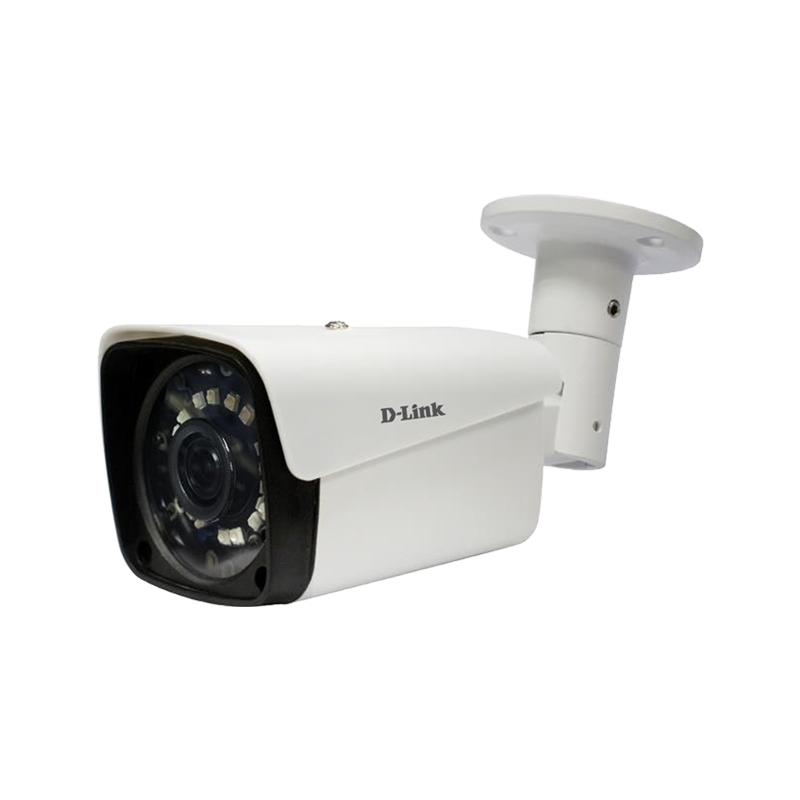

D-LINK 4MP FIXED IP BULLET CAMERA WITH AUDIO
Seller:
Maa Shanti Computer
- BRAND D-LINK
- TYPE 4MP FIXED IP BULLET CAMERA WITH AUDIO
- IP RANGE 30 METER
- POWER CONSUMPTION 7W
- CONTROLLER TYPE ANDROID
- LENS MOUNT M12
- FOR ANY OTHER QUERY GO TO HELP OPTION ON OUR WEBSITE
- Product Code: #19601019
- Category : SECURITY
- 1/2.7" Progressive Scan Cmos Sensor
- 3.6mm Fixed Lens
- Up To 2560 X 1440 Full Hd Resolution
- Ir Range Up To 30 Mtr.
- Dwdr, Day/Night (Icr), 3dnr, Awb, Agc, Blc
- Support Defog, Roi, Blc, Hlc Upnp-Tm
- Support Smart Functions
- Support Dual Stream
|
· CAMERA |
|
|
· Image Sensor |
1/2.7" Progressive scan CMOS Progressive |
|
· Min. Illumination |
0.01lux (Color), 0lux (IR on) |
|
· Shutter Time |
Auto/Manual, 1/3~1/10000s |
|
· Lens |
3.6 mm@F2.0: horizontal FOV: 86°, vertical FOV:64.5° |
|
· Lens Mount |
M12 |
|
· Day/Night |
IR cut filter with auto switch |
|
· Wide Dynamic Range |
DWDR |
|
· Max. IR LEDs Length |
30M |
|
· Smart IR |
Support |
|
· COMPRESSION STANDARD |
|
|
· Video Compression |
H.264/H.264+/H.265/H.265+ |
|
· H.264 Codec profile |
Base/Main/High profile |
|
· H.265 Codec profile |
Main profile |
|
· Video Bit Rate |
11 Kbps ~ 8Mbps |
|
· IMAGE |
|
|
· Max. resolution |
4MP (2560×1440) |
|
· Main Stream |
50Hz: 20fps 4MP(2560 × 1440), 25fps 3MP(2048 × 1536), 25fps 1080P(1920 × 1080), 25fps 960P(1280 × 960) 60Hz: 20fps 4MP(2560 × 1440), 30fps 3MP(2048 × 1536), 30fps 1080P(1920 × 1080), 30fps 960P(1280 × 960) |
|
· Sub Stream |
50Hz: 25fps D1(704 × 576),25fps CIF (352 × 288) 60Hz: 30fps D1(704 × 480),30fps CIF(352 × 240) |
|
· Image Setting |
Brightness/Contrast/Saturation/Hue/ |
|
· Sharpness |
|
|
· HLC |
50Hz:25fps CIF (352 × 288) 60Hz:30fps CIF (352 × 240) |
|
· BLC |
Support |
|
· ROI |
On/Off, zone configurable |
|
· Defog |
Support |
|
· NETWORK |
|
|
· Event |
Motion Detection, Video Shelter |
|
· Smart Functions |
Area Intrusion, Line crossing |
|
· Protocols |
TCP/IP,ICMP,HTTP,HTTPS,DHCP,DNS,DDNS,RTP, RTSP,RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P, Bonjour,IPV6 |
|
· System compatibility |
Onvif 2.6, Profile S, CGI |
|
· Security |
User authentication, IP address filtering, Video mask |
|
· Mobile Surveillance |
iPhone, iPad, Android devices |
|
· INTERFACE |
|
|
· Communication interface |
1 RJ45 10M / 100M Ethernet Port |
|
· GENERAL |
|
|
· Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
· Power Supply |
DC12V ± 10% ) |
|
· POE Supply |
PoE (802.3af) |
|
· Power Consumption |
Max. 7W |
|
· Weather Proof |
IP66 |
|
· Dimensions |
187*64*64mm |
|
· Weight (without HDD) |
300g |
|
· Certification |
CE, BIS |
|
· SYSTEM MANAGEMENT |
|
|
· Mobile Software |
D-Link Smart CCTV App |
|
· Desktop Software |
DSVS (D-Link Smart Video Surveillance) |
|
· System Requirement for Web Interface |
IE |
