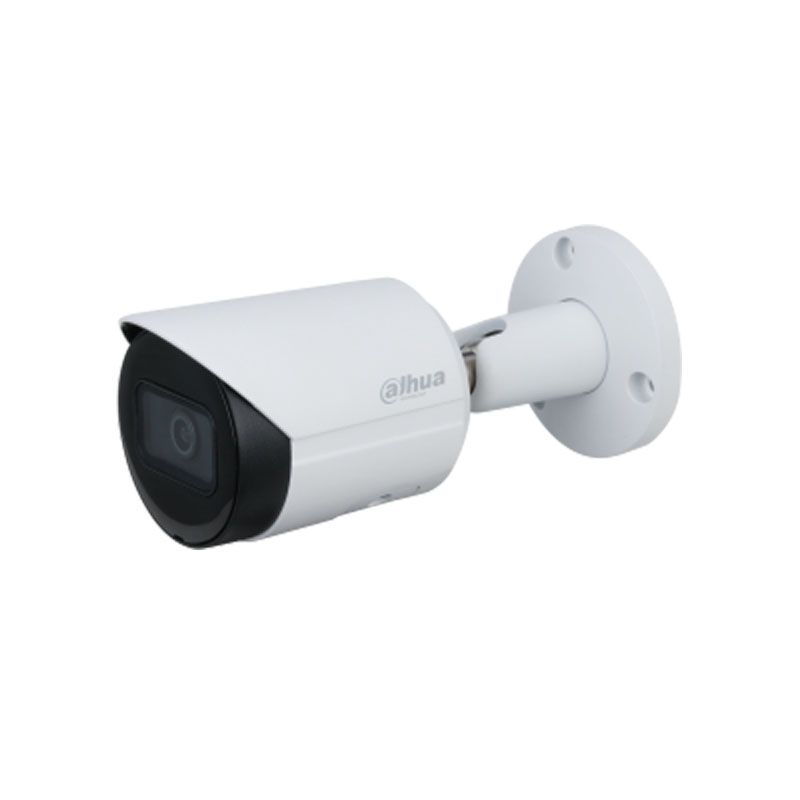

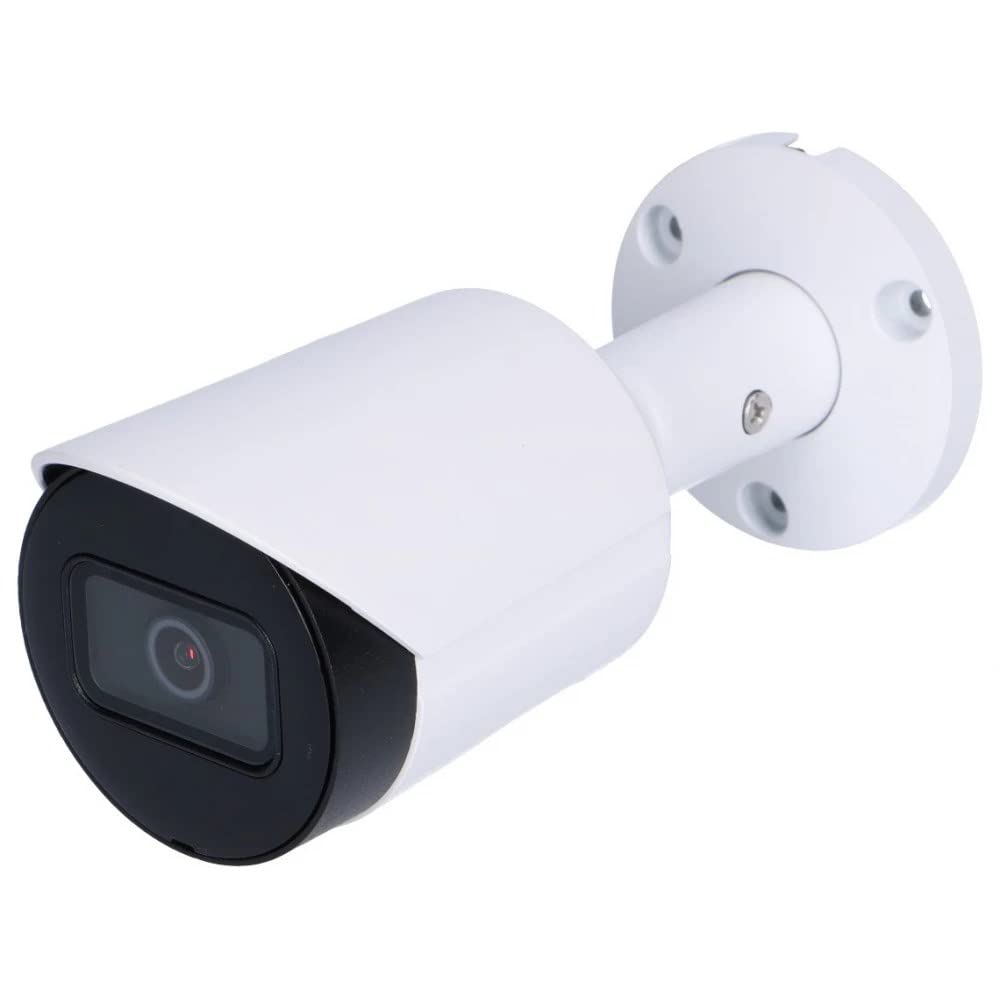

DAHUA 4MP IP FULL COLOR BULLET CAMERA
Seller:
Maa Shanti Computer
- BRAND DAHUA
- TYPE BULLET CAMERA
- RESOLUTION 4 MP
- 3.6 MM FIXED LENS
- IP RANGE 40 MM
- 256 GB MEMORY SUPPORT
- FOR ANY OTHER QUERY GO TO HELP OPTION ON OUR WEBSITE
- 5% DISCOUNT ON MINIMUM PURCHASE OF 2000 UP TO RS 250 ON UPI PAYMENT
- BANK OFFER: 5% INSTANT DISCOUNT ON ALL BANK DEBIT CREDIT CARD
- Product Code: #1960340
- Category : SECURITY
- 4MP, 1/3” CMOS Image Sensor, Low Illuminance, High Image Definition
- Outputs 4MP (2560 × 1440)@25/30fps, Max. Supports 4MP (2688 × 1520)@20 Fps
- H.265 Codec, High Compression Ration, Ultra-Low Bit Rate
- Built-In IR LED, Max IR Distance: 40 M
- ROI, SMART H.264/H.265, Flexible Coding, Applicable To Various Bandwidth And Storage Environments
- Rotation Mode, WDR, 3D DNR, HLC, BLC, Digital Watermarking, Applicable To Various Monitoring Scenes
- Intelligent Detection: Intrusion, Tripwire
- Abnormality Detection: Motion Detection, Video Tampering, No SD Card, SD Card Full, SD Card Error, Network Disconnected, IP Conflict, Illegal Access, Voltage Detection
- Supports Max. 256 GB Micro SD Card
- 12V DC/Poe Power Support
- IP67 Protection Grade
|
· Image Sensor |
1/3'' 4Megapixel progressive CMOS |
||||
|
· Effective Pixels |
2688 (H) x 1520 (V) |
||||
|
· ROM |
128 MB |
||||
|
· RAM |
128 MB |
||||
|
· Scanning System |
Progressive |
||||
|
· Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
|
· Min. Illumination |
0.008 Lux@F1.6 |
||||
|
· IR Distance |
30 m (98.43 ft) |
||||
|
· IR On/Off Control |
Auto/Manual |
||||
|
· IR LEDs Number |
1 |
||||
|
· Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||||
|
· Lens |
|||||
|
· Lens Type |
Fixed-focal |
||||
|
· Mount Type |
M12 |
||||
|
· Focal Length |
2.8 mm 3.6 mm |
||||
|
· Max. Aperture |
F1.6 F1.6 |
||||
|
· Field of View |
2.8 mm: Pan: 102.0° Tilt: 55.0° Diagonal: 121.0° 3.6 mm : Pan: 84.0° Tilt: 45.0° Diagonal: 100.0° |
||||
|
· Iris Type |
Fixed aperture |
||||
|
· Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft) |
||||
|
· DORI Distance |
· Lens |
Detect |
Observe |
Recognize |
Identify |
|
· 2.8 mm |
56 m (183.73 ft) |
22.4 m (73.49 ft) |
11.2 m (36.75 ft) |
5.6 m (18.37 ft) |
|
|
· 3.6 mm |
80 m (262.47 ft) |
32.0 m (104.99 ft) |
16.0 m (52.49 ft) |
8.0 m (26.25 ft) |
|
|
· Smart event |
|||||
|
· General IVS Analytics |
Tripwire; intrusion |
||||
|
· Video |
|||||
|
· Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
|
· Smart Codec |
Yes |
||||
|
· Video Frame Rates |
Main stream: 2688 x 1520 (1 fps-20 fps) 2560 x 1440 (1 fps-25/30 fps) Sub stream: 704 x 576 (1 fps-25 fps) 704 x 480 (1 fps-30 fps) |
||||
|
· Streaming Capability |
2 Streams |
||||
|
· Resolution |
2688 x 1520 (2688 x 1520); 2560 x 1440 (2560 x 1440); 2304 x 1296 (2304 x 1296); 1080p (1920 x1080);1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x480); CIF (352 x 288/352 x 240) |
||||
|
· Bit Rate Control |
CBR/VBR |
||||
|
· Bit Rate |
H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps |
||||
|
· Day/Night |
Auto(ICR)/Color/B/W |
||||
|
· BLC |
Yes |
||||
|
· HLC |
Yes |
||||
|
· WDR |
120 dB |
||||
|
· White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
|
· Gain Control |
Auto / Manual |
||||
|
· Noise Reduction |
3D DNR |
||||
|
· Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
· Region of Interest(RoI) |
Yes (4 areas) |
||||
|
· Smart IR |
Yes |
||||
|
· Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) |
||||
|
· Mirror |
Yes |
||||
|
· Privacy Masking |
4 areas |
||||
|
· Network |
|||||
|
· Ethernet |
RJ-45 (10/100 Base-T) |
||||
|
· Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
||||
|
· Interoperability |
ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec |
||||
|
· User/Host |
20 |
||||
|
· Edge Storage |
Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
||||
|
· Browser |
IE Chrome Firefox |
||||
|
· Management Software |
Smart PSS; DSS; DMSS |
||||
|
· Mobile Phone |
IOS; Android |
||||
|
· Certifications |
|||||
|
· Certifications |
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
||||
|
· Power |
|||||
|
· Power Supply |
12V DC/PoE (802.3af) |
||||
|
· Power Consumption |
< 5W |
||||
|
· Environmental |
|||||
|
· Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH |
||||
|
· Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||
|
· Protection Grade |
IP67 |
||||
|
· Construction |
|||||
|
· Casing |
Metal |
||||
|
· Dimensions |
166.2 mm x Φ70 mm (6.54" x Φ2.76") |
||||
