CP-UVR-0401E1-S 4 Ch. 1080P Lite Cosmic HD DVR Auto Adaptive HDCVI/AHD/TVI/CVBS signals Support up to 5MP IP Camera All channel 1080P Lite Real time Recording H.264 dual-stream Video Compression HDMI / VGA Simultaneous Video Output Support 1 SATA HDD up to 6TB, 2 USB2.0 Mobile Software: iCMOB, gCMOB CMS Software: KVMS, KVMS Pro

• Processor Embedded processor
• Operating System Embedded LINUX
• IP Camera Input 4+1: each channel up to 2MP
• Two-way TalkReuse audio in/out, RCA
• User Interface GUI
• Video-Input 4 channel, BNC
• Video Output 1 HDMI, 1 VGA
• Compression H.264
• Video Resolution1920×1080, 1280×1024, 1280×720
• Video Recording Main Stream: 1080N/720P/960H/D1/CIF (1~25/30fps), Substream CIF : (1~15fps)
• Video Display Split 1/4
• Audio Input 1 channel, RCA
• Audio Output 1 channel, RCA
• Motion Detection Supports
• Video Loss Supports
• Camera Blank Supports
• Hard Disk 1 SATA port, up to 6TB
• Smart PhoneiPhone, iPad, Android Phone
• Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Search ModeTime/Date, MD & Exact search (accurate to second)
• Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
• Backup Mode USB Device/Network

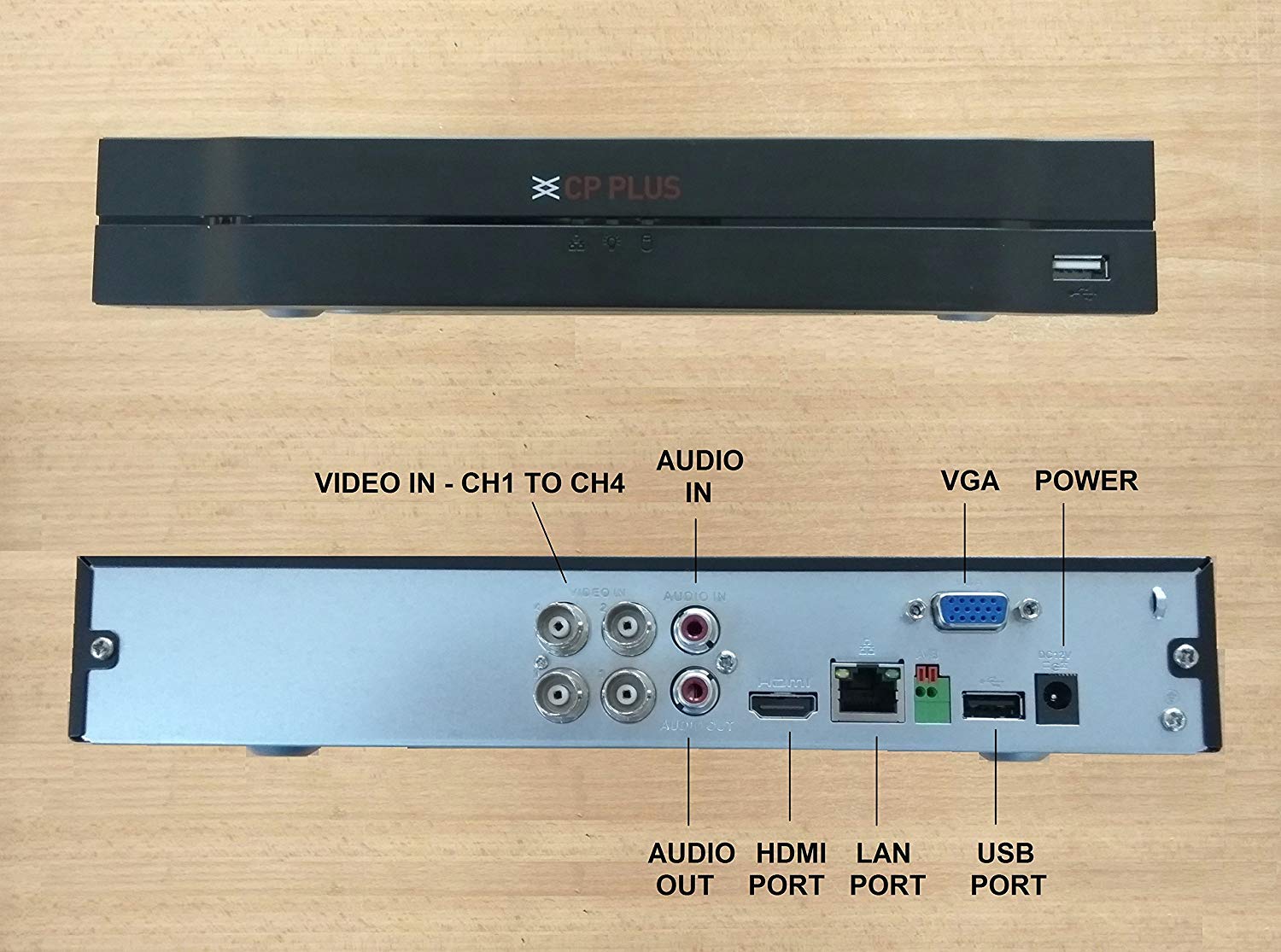

• Interface Ports 1 HDMI, 1 VGA, 2 USB2.0
• Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
• Max User Account 128 users
• EthernetRJ-45 port (100M)
• ProtocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant
• Power Supply DC12V/1.5A
• Power Consumption <10W(without HDD)
• Working Temp -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
• Dimension 197mm×192mm×38mm
• Weight0.55kg (without HDD)
