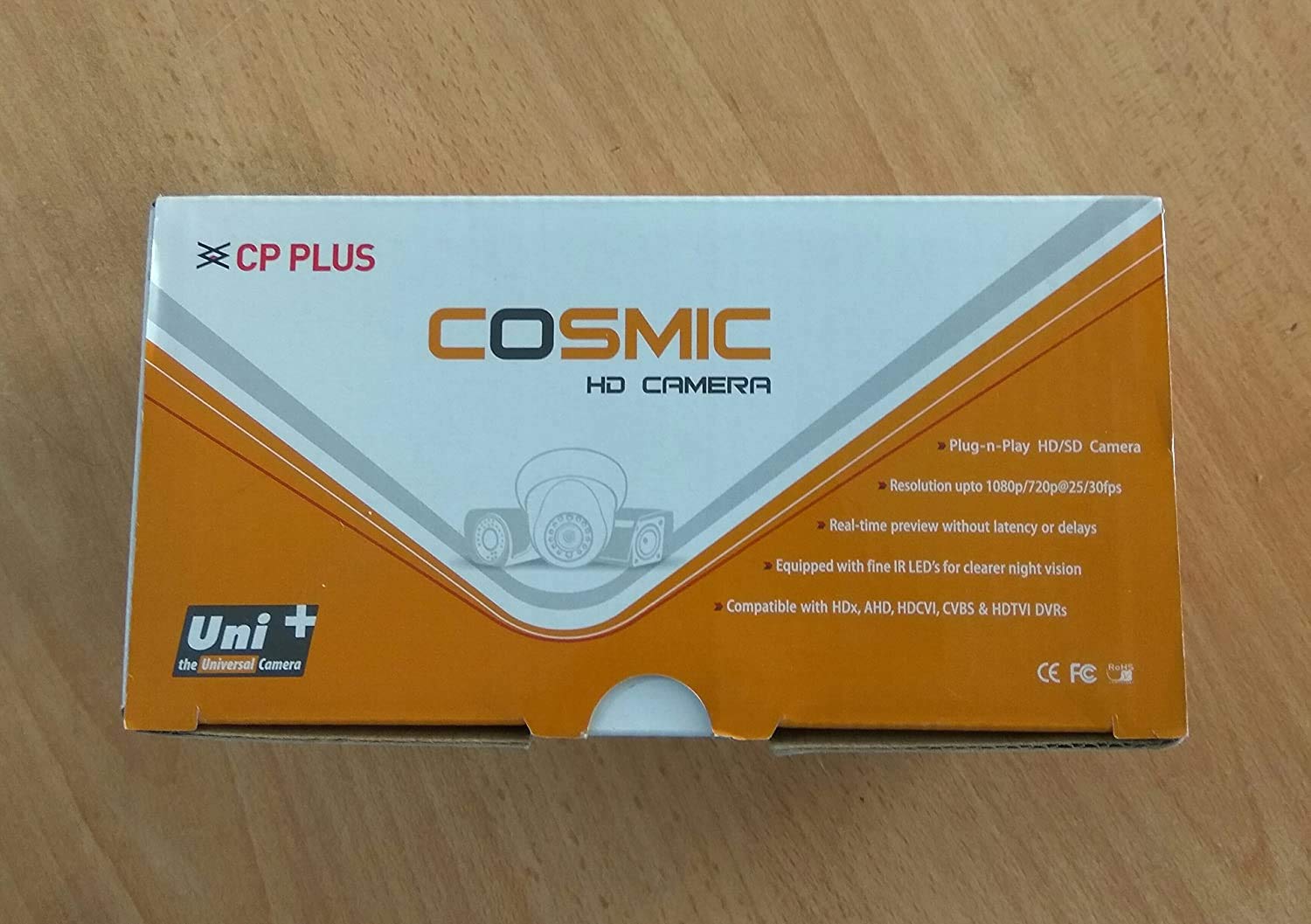

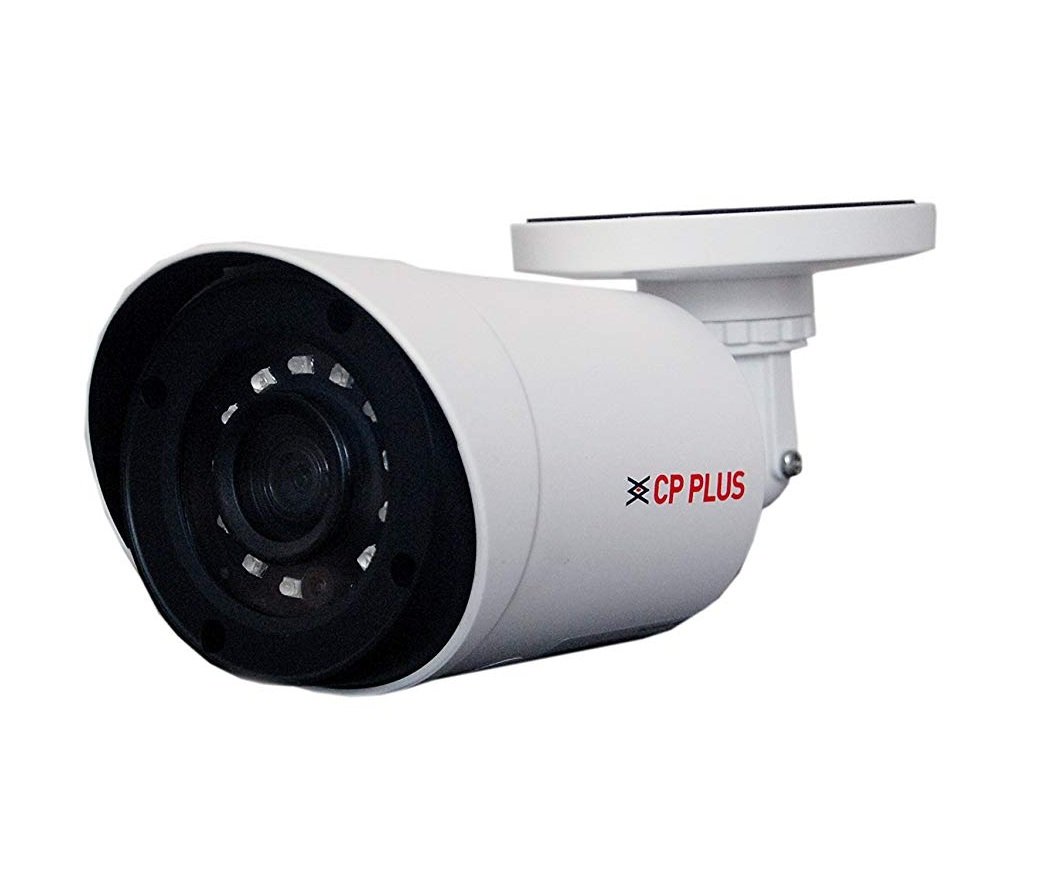

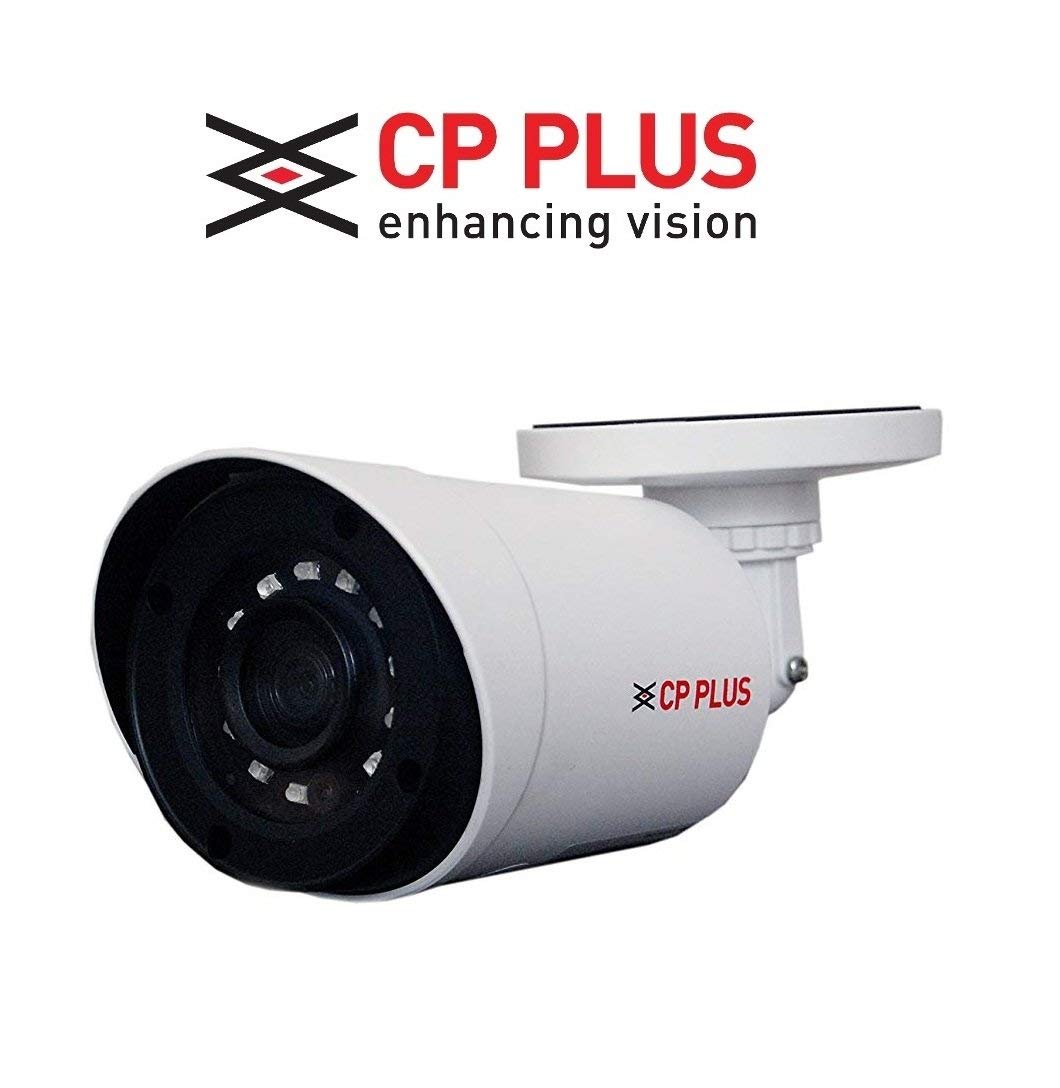

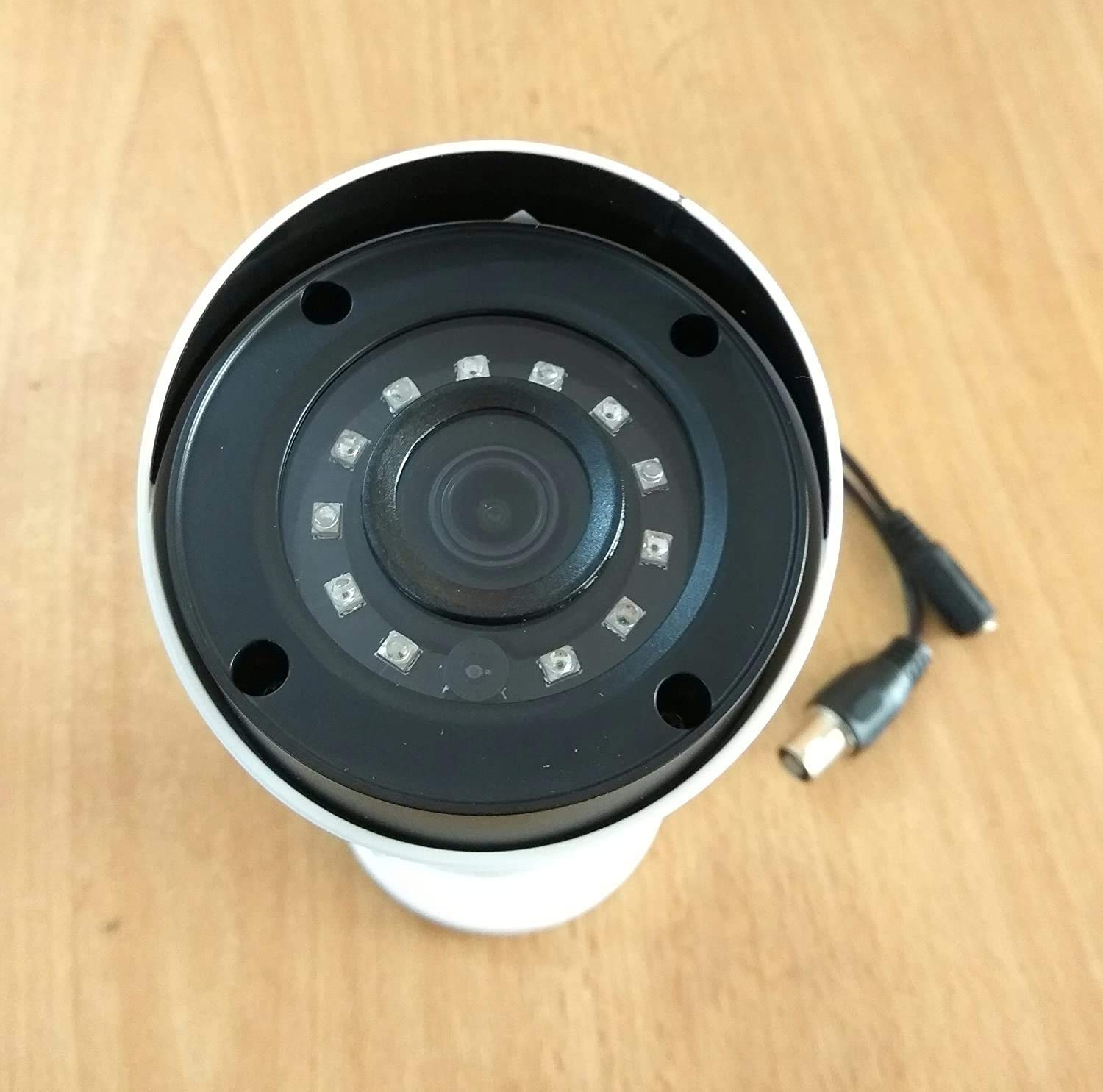

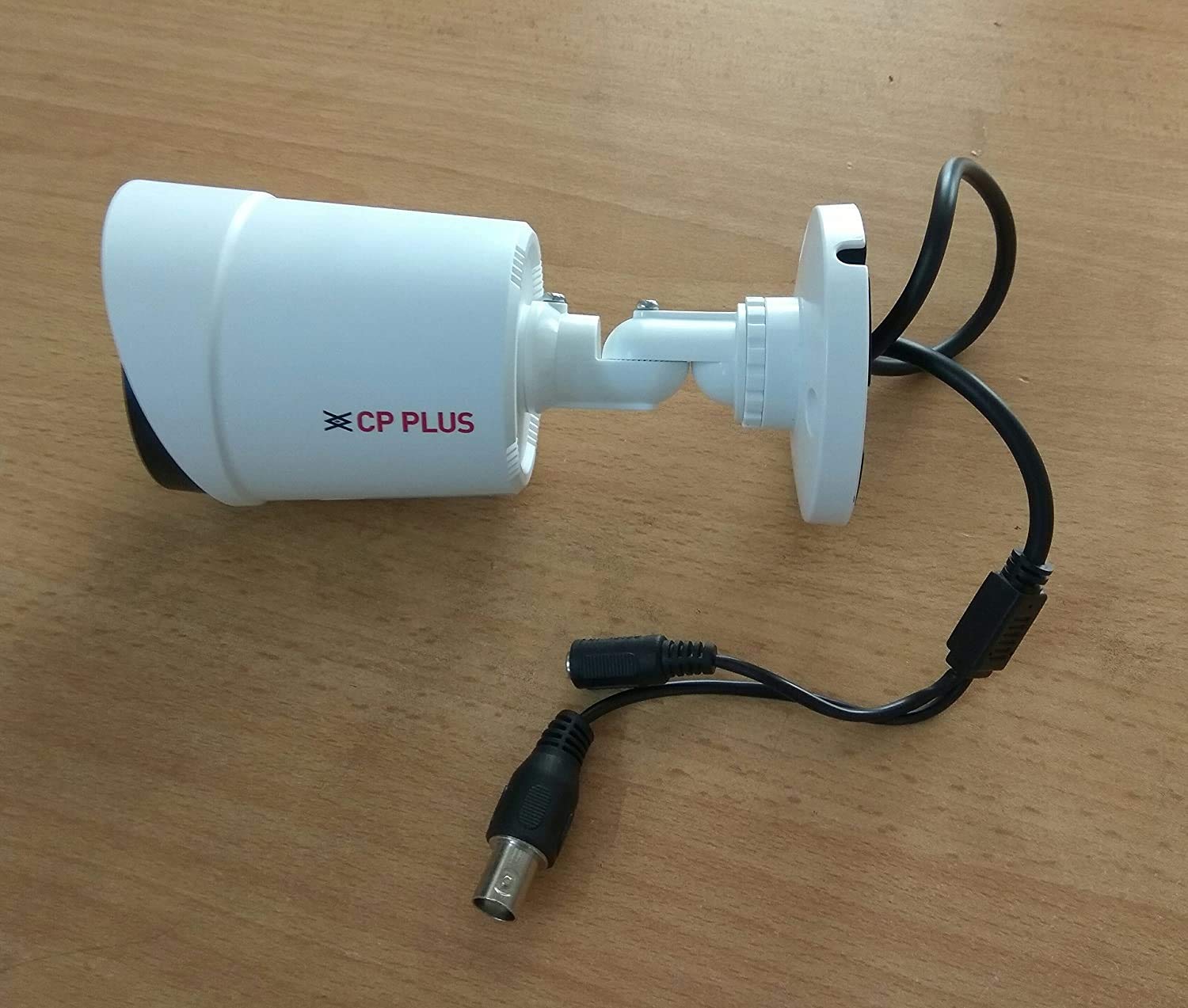

CP PLUS 2.4MP Cosmic Bullet Camera Full HD IR Cosmic Bullet Camera 20Mtr CP USC TA24L2
Seller:
Maa Shanti Computer
- Product Code: #021
- Category: Electronics
1/2.7" 2.4 MP HQIS Pro Image Sensor Max 25/30fps@ 2.4MP DWDR, Day/Night(ICR), AWB, AGC, BLC 3.6mm fixed lens (6mm optional) IR Range of 20 Mtrs. OSD Menu, control over coaxial cable, 2D-DNR HD and SD switchable
SKU
: SEC.HDC.62075031
Type
: Bullet IR Camera
IR Distance
: IR Range of 20 Mtr.
Lens
: 3.6mm (2.8mm, 6mm Optional)
Image Sensor
: 1/2.7" CMOS
S/N Ratio
: More than 65dB
Weight
: 0.15 kg
Power Consumption
: Max 3.3W (12V DC, IR on)
Operating Temperature
: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Angle of View
: H: 87.5° (103°, 54.7°)
Model No
: CP-USC-TA24L2
Minimum Illumination
: 0.02Lux/F1.85, 30IRE, 0Lux IR on
White Balance
: Auto / Manual
OSD
: Multi-language
Effective Pixels
: 2.4MP
Power Source
: 12V DC ±30%
Shutter Speed
: PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
Back Light Comp.
: BLC / HLC / DWDR
ICR
: Auto (ICR) / Manual
Video Outputs
: 1-channel BNC high definition video output / CVBS video output (Can switch)
Dimension
: 154.3mm×69.8mm×69.8mm
Gain Control (AGC)
: Auto / Manual
Video Streaming
: 25/30fps@2.4MP, 25/30/50/60fps@720P
- 1/2.7" 2.4MP PS CMOS Image Sensor
- Max 25/30fps@ 2.4MP
- DWDR, Day/Night(ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 3.6mm fixed lens (2.8mm, 6mm optional)
- IR Range of 20 Mtrs., IP67
- OSD Menu, control over coaxial cable, 2D-DNR
- HD, SD, and Two Others Analog formats output switchable
