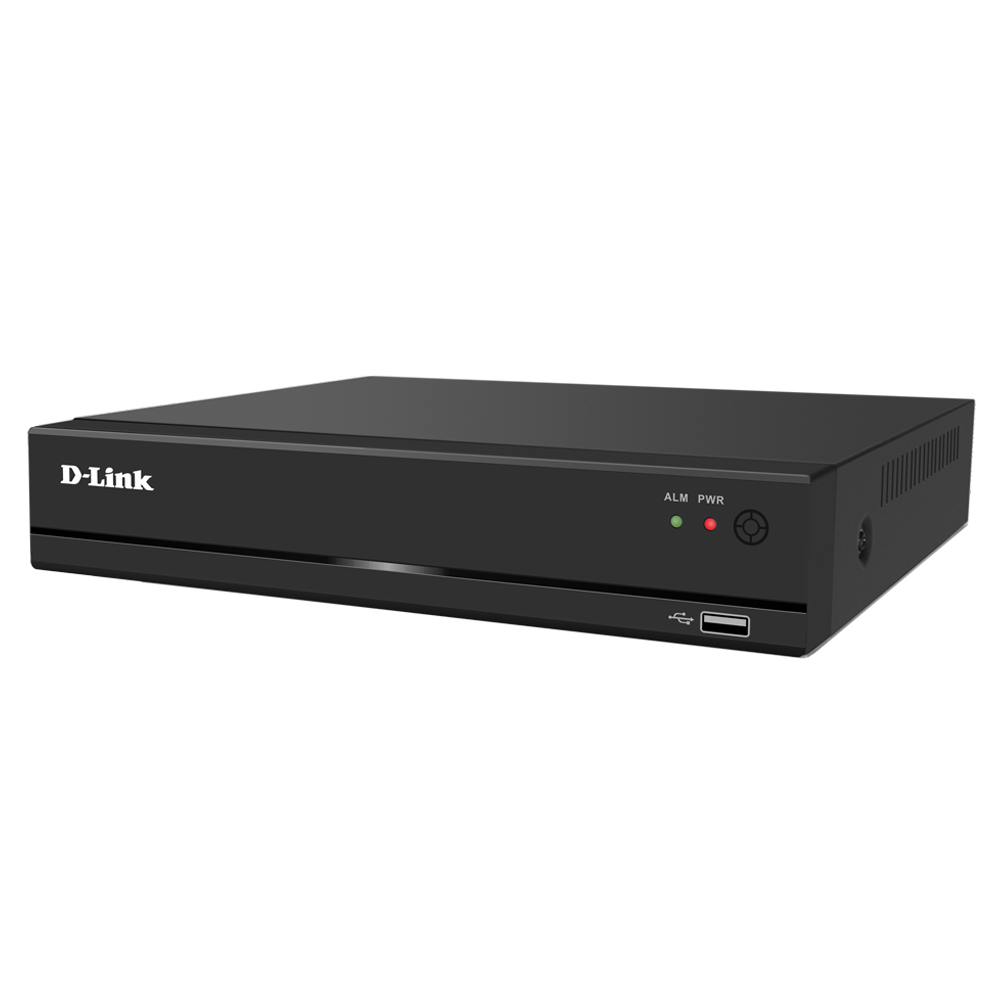

D-LINK 8 CHANNEL FULL HD H.265+ 1 SATA DVR, DVR-F2108-L2
Seller:
Maa Shanti Computer
- BRAND D-LINK
- TYPE DVR
- NO. OF CHANNELS 8
- MEDIA FORMAT FULL HD
- COLOUR BLACK
- FOR ANY OTHER QUERY GO TO HELP OPTION ON OUR WEBSITE
- Product Code: #19601022
- Category : SECURITY
- Support Ahd/Tvi/Cvi/Ip Cameras
- Support Ahd/Tvi Cameras Upto 5mp
- Support H.265+/H.265/H.264+/H.264
- Support Time Division & Instant Playback
- Support Cloud Storage
- Support Event Stream
|
• Video & Audio Input |
|
|
• Video Input |
8ch BNC interface (1.0Vp-p, 75 Ω) |
|
• Tvi /Ahd |
5MP,4MP,1080P, 720P |
|
• Cvi |
4MP,1080P,720P |
|
• Ipc |
Up to 8ch Up to 5MP in full IP mode |
|
• Audio Input |
1-ch, multiplex with Audio Input(RCA) |
|
• Two Way Talk |
1-ch, multiplex with Audio Input(RCA) |
|
• Video & Audio Output |
|
|
• Hdmi |
1ch, resolution: 4K，1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz |
|
• Vga |
1ch, resolution: 1920×1080/60Hz，1280×1024/60Hz，1280×720/60Hz |
|
• CVBS Output |
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
|
• Audio Output |
1-ch, RCA (Linear, 1kΩ) |
|
• Recording |
|
|
• Compression |
H.265/H.265+ |
|
• Resolution |
8ch 5MP Lite@12fps; 8ch 4MP Lite/1080P@15fps; 1080P Lite@25fps 720P/960H/D1/CIF real time |
|
• Video Bit Rate |
11Kbps-4096Kbps |
|
• Audio Compression |
G.711a |
|
• Audio Bit Rate |
64Kbps |
|
• Playback & Backup |
|
|
• Playback Mode |
Normal/Time Division/ Label/ Event/ Picture Playback |
|
• Playback Rate |
4ch Playback |
|
• Backup Mode |
USB Device/Network |
|
• Cloud Function |
|
|
• Cloud Storage |
Support |
|
• Cloud Upgrade |
Support |
|
• Network |
|
|
• Ethernet |
1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
• Network Function |
HTTPs, HTTP,TCP/IP,IPv4,UPnP,Onvif 2.6,RTSP,RTCP, UDP, SMTP,SNMP,Multicast,IGMP,NTP, DHCP,DNS,DDNS, FTP, P2P |
|
• Smart Phone |
IOS (iPhone, iPad), Android (Phone, Pad) |
|
• Hard Disk |
|
|
• Sata |
1 HDD |
|
• Capacity |
Up to 8TB capacity for each HDD |
|
• External Interface |
|
|
• Serial Interface |
NA |
|
• Usb Interface |
2 × USB |
|
• General |
|
|
• Power Supply |
DC12V, 1.5A |
|
• Power Consumption |
≤15W (without HDD) |
|
• Working Environment |
-10°C~+55°C / 10%~90%RH |
|
• Dimension (W×D×H) |
250 x 230 x 45mm |
|
• Weight (Without HDD) |
1.5kg |
|
• Certification |
CE, BIS |
|
• System Management |
|
|
• Mobile Software |
D-Link Smart Plus CCTV App |
|
• Desktop Software |
D-Link Smart Video Surveillance 2.0 |
|
• System Requirement For Web Interface |
IE |
