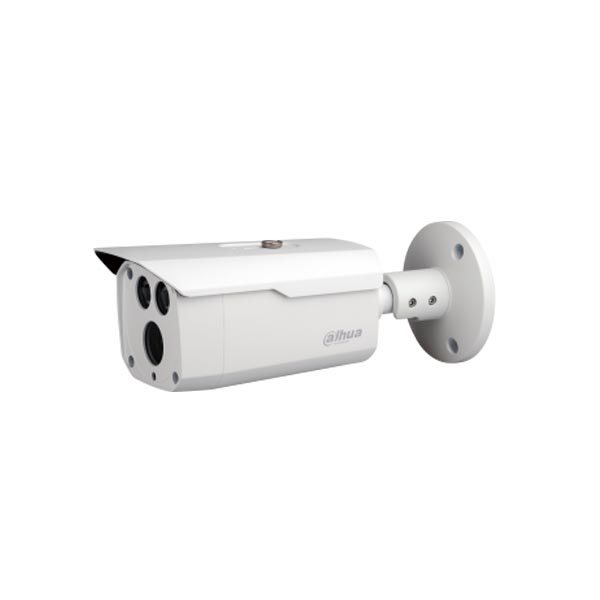

DAHUA HFW1500DP BULLET HDCVI CAMERA 5MP, 3.6MM (77.5°) FIXED LENS, IR LED 80M
Seller: Maa Shanti Computer

Add Your Review
2149.00 3999.00 Save 1850 (46.26%)

Highlights
  • BRAND DAHUA
  • TYPE BULLET CAMERA
  • 3.6MM FIXED LENS
  • MAX. IR LENGTH 80M, SMART IR
  • FOR ANY OTHER QUERY GO TO HELP OPTION ON OUR WEBSITE
Offers
  • 5% DISCOUNT ON MINIMUM PURCHASE OF 2000 UP TO RS 250 ON UPI PAYMENT
  • BANK OFFER: 5% INSTANT DISCOUNT ON ALL BANK DEBIT CREDIT CARD
Wishlist
  • Product Code: #1960317
  • Category: SECURITY
  • System Overview
    Experience Superior 5MP Video And The Simplicity Of Reusing Existing
    Coaxial Infrastructure With HDCVI.
  • The Lite Series 5MP HDCVI Camera
    Features A Compact Design And Offers A High Quality Image With Rich Details
    At A Friendly Price.
  • It Offers Various Vari-Focal/Fixed Lens Models With A
    Multi-Language OSD And HD/SD Switchable Output.
  • Its Structural Flexibility
    And High Cost-Performance Makes The Camera An Ideal Choice For SMB
    Solutions.
  • Functions
    4 Signals Over 1 Coaxial Cable
    HDCVI Technology Supports 4 Signals To Be Transmitted Over 1 Coaxial
    Cable Simultaneously, I.E. Video, Audio*, Data And Power.
  • Dual-Way Data
    Transmission Allows The HDCVI Camera To Interact With The HCVR, Such As
    Sending Control Signal Or Triggering Alarm.
  • Moreover, HDCVI Technology
    Supports Poc For Construction Flexibility.
     Audio Input Is Available For Some Models Of HDCVI Cameras.
  • Long Distance Transmission
    HDCVI Technology Guarantees Long-Distance And Real-Time Transmission
    Without Any Loss.
  • It Supports Up To 700m For 5MP HD Video Via Coaxial
    Cable, And Up To 300m Via UTP Cable.
    Actual Results Verified By Real-Scene Testing In Dahua’s Test Laboratory.
  • Simplicity
    HDCVI Technology Inherits The Born Feature Of Simplicity From Traditional
    Analog Surveillance System, Making Itself A Best Choice For Investment
    Protection.
  • HDCVI System Can Seamlessly Upgrade The Traditional Analog System Without Replacing Existing Coaxial Cabling.
  • The Plug And
    Play Approach Enables Full HD Video Surveillance Without The Hassle Of
    Configuring A Network.
  • Smart IR
    The Camera Is Designed With Array LED IR Illumination For Best Lowlight
    Performance.
  • Smart IR Is A Technology To Ensure Brightness Uniformity
    In B/W Image Under Low Illumination.
  • Dahua’s Unique Smart IR Adjusts To
    The Intensity Of Camera’s Infrared Leds To Compensate For The Distance Of
    An Object, And Prevents IR Leds From Overexposing Images As The Object
    Come Closer To The Camera.
  • Multi-Formats
    The Camera Supports Multiple Video Formats Including HDCVI, CVBS And
    Other Two Common HD Analog Formats In The Market.
  • The Four Formats Can
    Be Switched Over Through OSD Menu Or By PFM820(UTC Controller).
  • This
    Feature Makes The Camera To Be Compatible With Not Only Hcvrs But Also
    Most End Users’ Existing HD/SD Dvrs.
  • Multi-Language OSD
    OSD Menu Provides Multiple Image Adjustments And Function Settings
    To Meet The Requirements Of Different Monitoring Scenes.
  • The OSD Menu
    Includes Configurations Such As Backlight Mode, Day/Night, White Balance,
    Privacy Mask And Motion Detect.
  • The Camera Supports 11 Languages For
    OSD Menu, Namely, Chinese, English, French, German, Spanish, Portuguese,
    Italian, Japanese, Korean, Russian And Polish.
  • Protection
    The Camera’s Outstanding Reliability Is Unsurpassed Due To Its Rugged Design.
    The Camera Is Protected Against Water And Dust With IP67 Ranking, Making It
    Suitable For Indoor Or Outdoor Environments.
    With Working Temperature Range Of -40 °C To +60 °C (-40 °F To +140 °F), The
    Camera Is Designed For Extreme Temperature Environments.
    Supporting ±30% Input Voltage Tolerance, This Camera Suits Even The
    Most Unstable Power Supply Conditions.
  • Its 4KV Lightning Rating Provides
    Protection Against The Camera And Its Structure From The Effects Of Lightning.
  • Technical Specification
    Camera
    Image Sensor : 1/2.7″ CMOS
    Effective Pixels : 2592(H)×1944(V), 5MP
    Scanning System : Progressive
    Electronic Shutter Speed : PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
    Minimum Illumination : 0.02Lux/F1.85, 30IRE, 0Lux IR On
    S/N Ratio : More Than 65db
    IR Distance : Up To 80m (262feet)
    IR On/Off Control :  Auto / Manual
    IR Leds : 2
  • Lens
    Lens Type : Fixed Lens / Fixed Iris
    Mount Type : Board-In
    Focal Length : 3.6mm (6mm, 8mm Optional)
    Max Aperture : F1.85
    Angle Of View H: 77.5° (49°/37°)
    Focus Control : N/A
    Close Focus Distance : 1400mm (2800mm/4500mm) 55.1” (110.2 ”/177”)
  • DORI Distance
    Note: The DORI Distance Is A “General Proximity” Of Distance Which Makes It Easy To
    Pinpoint The Right Camera For Your Needs. The DORI Distance Is Calculated Based On
    Sensor Specification And Lab Test Result According To EN 62676-4 Which Defines The
    Criteria For Detect, Observe, Recognize And Identify Respectively.
  • DORI
    Definition : Distance
    Detect : 25px/M
    (8px/Ft)
    3.6mm: 80m(262ft)
    6mm: 120m(394ft)
    8mm: 160m(525ft)
  • Observe : 63px/M
    (19px/Ft)
    3.6mm: 32m(105ft)
    6mm: 48m(157ft)
    8mm: 64m(210ft)
  • Recognize : 125px/M
    (38px/Ft)
    3.6mm: 16m(53ft)
    6mm: 24m(79ft)
    8mm: 32m(105ft)
  • Identify : 250ppm
    (76px/Ft)
    3.6mm: 8m(26ft)
    6mm: 12m(39ft)
    8mm: 16m(53ft)
  • Pan / Tilt / Rotation
    Pan/Tilt/Rotation
    Pan: 0° ~ 360°
    Tilt: 0° ~ 87°
    Rotation: 0° ~ 360°
  • Video
    Resolution : 5MP (2592×1944)
    Frame Rate : 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P
    Video Output : 1-Channel BNC High Definition Video Output / CVBS
    Video Output (Can Switch)
    Day/Night Auto : (ICR) / Manual
  • OSD Menu Multi-Language
    BLC Mode : BLC / HLC / DWDR
    WDR : DWDR
    Gain Control : AGC
    Noise Reduction : 2D
    White Balance : Auto / Manual
    Smart IR : Auto / Manual
  • Certifications
    Certifications
    CE (EN55032, EN55024, EN50130-4)
    FCC (CFR 47 FCC Part 15 Subpartb, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
  • Interface
    Audio Interface : N/A
  • Electrical
    Power Supply : 12V DC ±30%
    Power Consumption : Max. 4.6W (12V DC, IR On)
  • Environmental
    Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less Than 95% RH
    * Start Up Should Be Done At Above -40°C (-40°F)
    Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less Than 95% RH
  • Ingress Protection &Vandal
    Resistance : IP67
  • Construction
    Casing : Aluminium
    Dimensions : 241.8mm×90.4mm×90.4mm (9.52″×3.56″×3.56″)
    Net Weight : 0.58kg (1.28lb)
    Gross Weight : 0.70kg (1.54lb)
