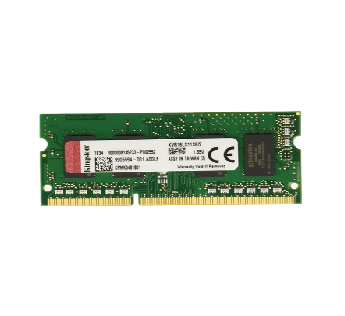

Kingston 2GB Laptop Ram DDR3L KVR16LS11S6/2 Low Voltage - 1600 MHz / PC3L-12800 - CL11-1.35 V

1239.00 2599.00 Save 1360 (52%)

Available: In Stock
Delivery 1-2 Days
Wishlist
  • Seller

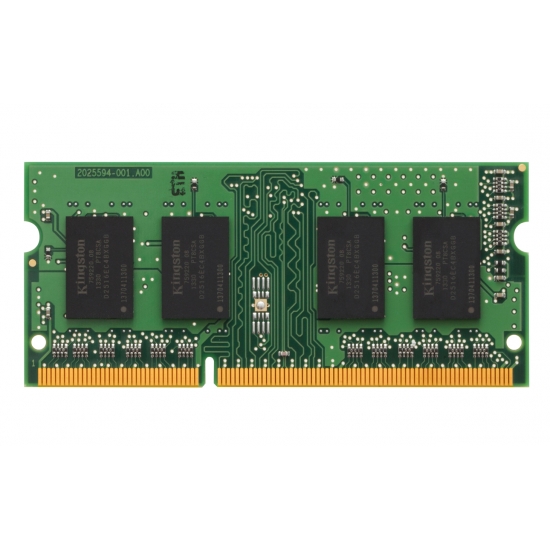

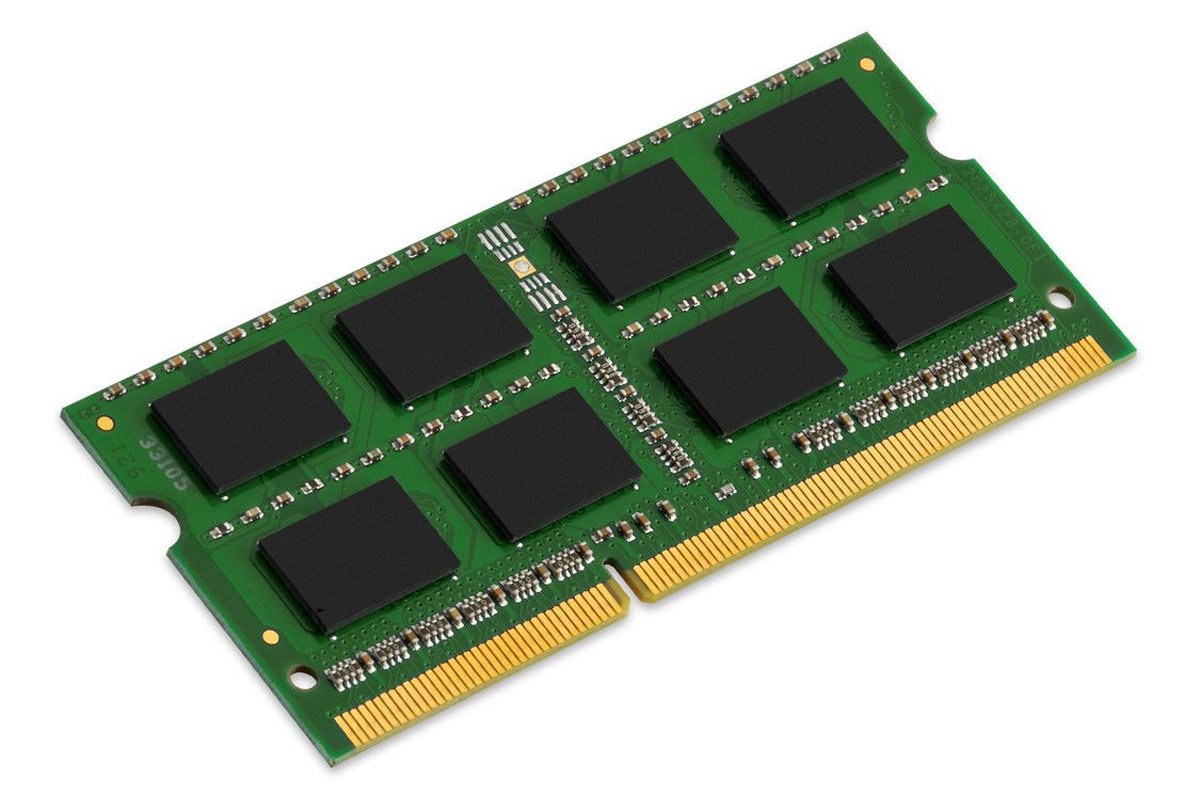

This document describes ValueRAM's 256M x 64-bit (2GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 256M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

  • JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply.
  • VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
  • 800MHz FCK for 1600Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe.
  • Internal(self) calibration: Internal self-calibration through ZQ pin (RZQ: 240 ohms ± 1%)
  • On Die Termination using ODT pin.
  • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C.
  • Asynchronous Reset.
  • PCB : Height 1.180” (30.00mm), single-sided component.
