By KINGSTON

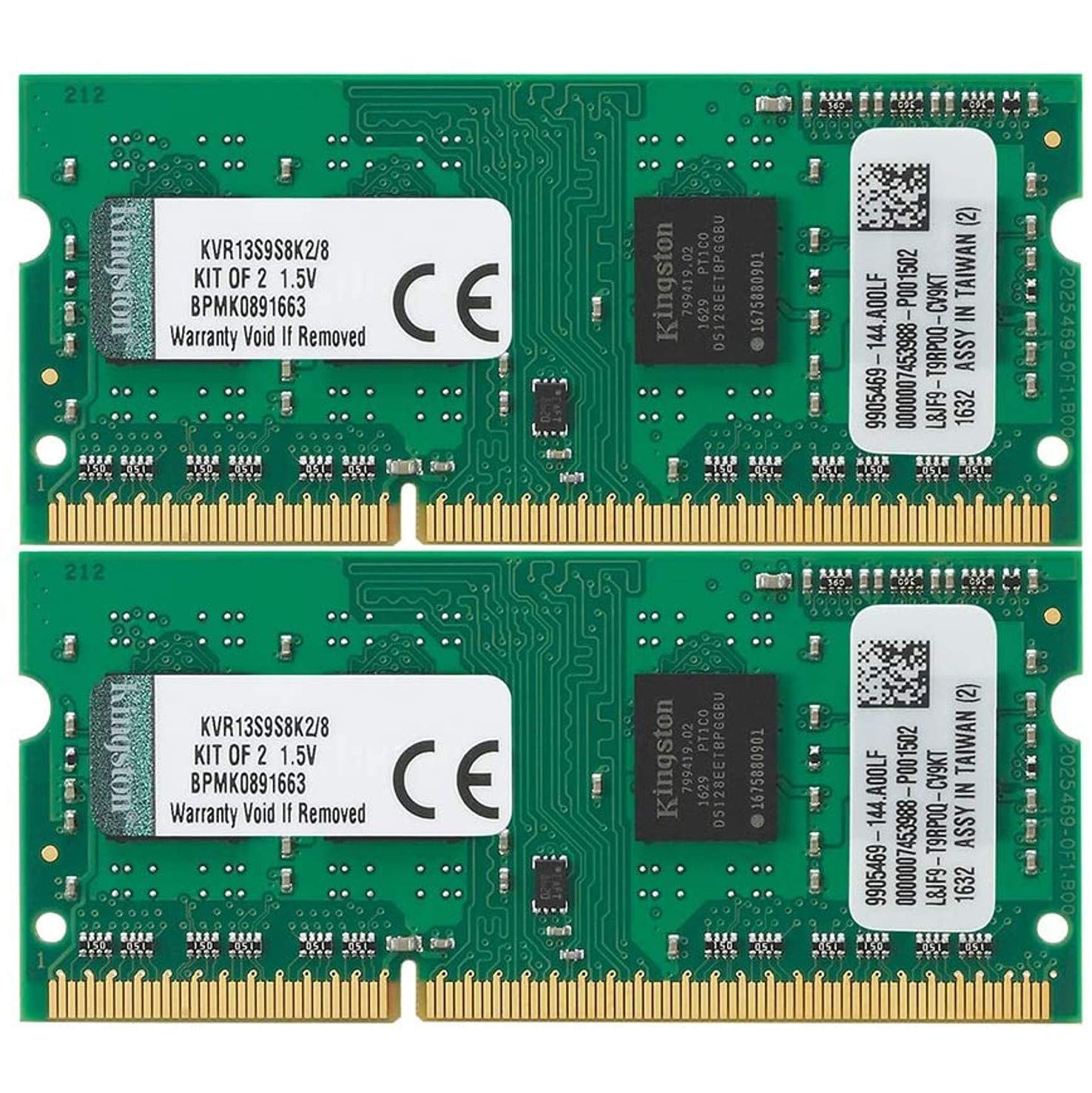

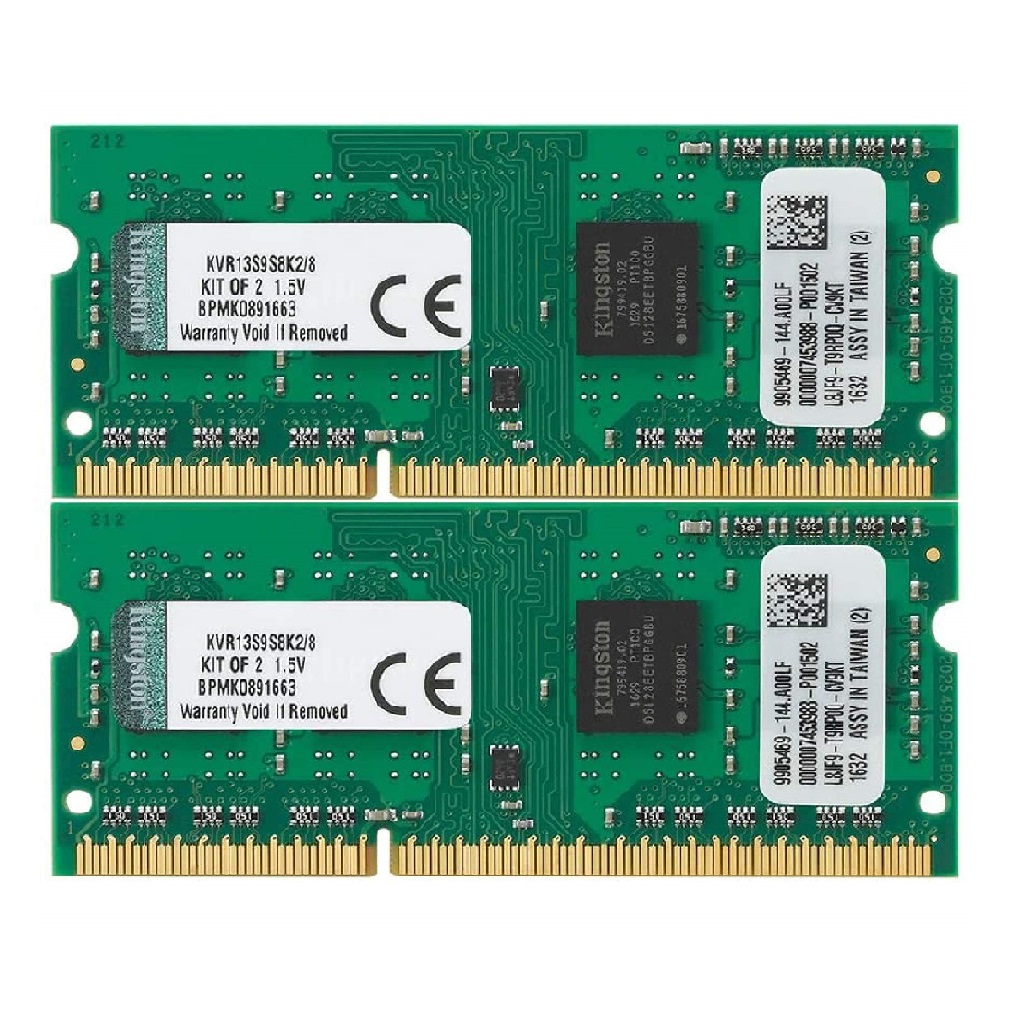

Kingston 8GB RAM DDR3 Notebook Memory Kit (2x4GB) 1333MHz Laptop Ram DDR3 Non - ECC CL9 SODIMM SR x8 Notebook Memory ValueKVR13S9S8K2/8
Seller: Maa Shanti Computer

Add Your Review
5990.00 12500.00 Save 6510 (52.08%)

Wishlist

ValueRAM's KVR13S9S8K2/8 is a kit of two 512M x 64-bit (4GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), 1Rx8 memory modules, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 8GB. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. Each 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ = 1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • Programmable CAS Write Latency(CWL) = 7 (DDR3-1333).
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS].
  • Bi-directional Differential Data Strobe.
  • Internal(self) calibration: Internal self-calibration through ZQ pin (RZQ: 240 ohms ± 1%)
  • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
  • PCB: Height 1.18” (30mm), double sided component.

ValueRAM's KVR13S9S8K2/8 is a kit of two 512M x 64-bit (4GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), 1Rx8 memory modules, based on eight 512M x 8-bit FBGA components per module. Total kit capacity is 8GB. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. Each 204-pin SODIMM uses gold contact fingers.

Technical Details

Customer Reviews

No Review Yet Write a review
