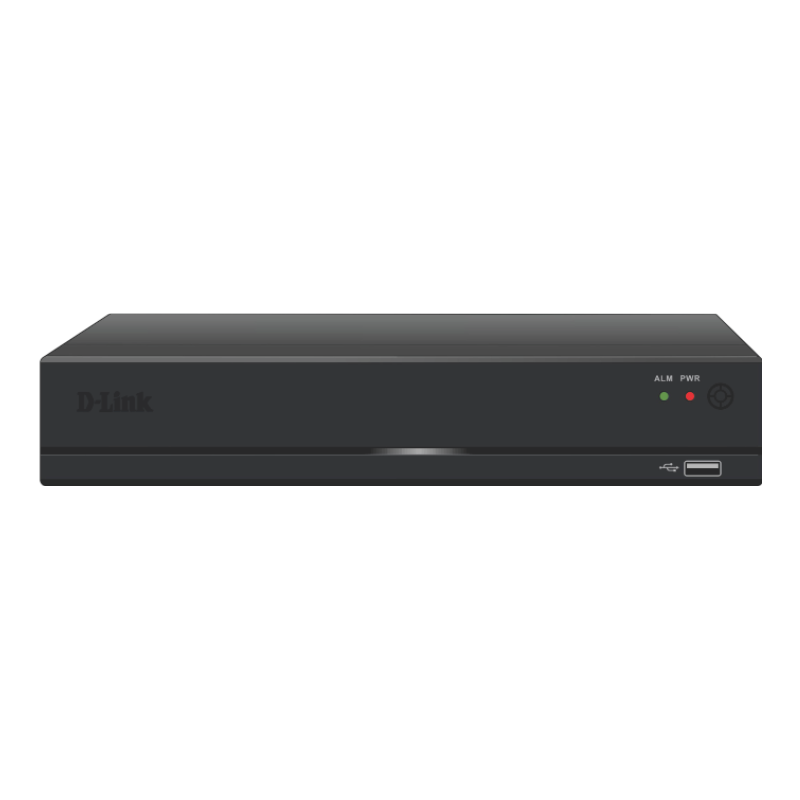

D-LINK 8 CHANNEL H.265+ 5MP 1 SATA NVR, DNR-F5108-M5
Seller:
Maa Shanti Computer
- BRAND D-LINK
- TPYE NVR
- NO. OF CHANNELS 8
- SUPPORTS UPTO 5MP
- COLOUR BLACK
- FOR ANY OTHER QUERY GO TO HELP OPTION ON OUR WEBSITE
- Product Code: #19601024
- Category : SECURITY
- 8ch, 1 Sata Nvr
- Support Up To 5mp Ipc
- Support H.265+/H.265/H.264+/H.264
- Support Smart Playback & Analytics
- Support 3g/4g Wi-Fi Connectivity
- Support Google Drive & Dropbox Cloud Storage
- Support Onvif 2.6
|
• Video & Audio Input |
|
|
• Ip Video Input |
8ch |
|
• Audio Input |
N/A |
|
• Video & Audio Output |
|
|
• Hdmi |
1ch, Resolution:1920×1080/60hz,1440×900/60hz,1280 ×1024/60hz, 1280×720/60hz,1024×768/60hz |
|
• Vga |
1ch, Resolution:1920×1080/60hz,1440×900/60hz,1280 ×1024/60hz, 1280×720/60hz,1024×768/60hz |
|
• Audio Output |
N/A |
|
• Recording |
|
|
• Compression |
H.265+/H.265 /H.264+/H.264 |
|
• Resolution |
5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF |
|
• Playback & Backup |
|
|
• Playback Mode |
Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback |
|
• Decoding Capability |
4ch@1080p(25fps) |
|
• Backup Mode |
Usb Device/Network |
|
• Advanced Features |
|
|
• Smart Detection |
Line Crossing, Area Intrusion, Fast Moving, Unattached Object, Object Missing |
|
• Smart Playback |
Line Crossing/Area Intrusion /Motion Detection |
|
• Cloud Storage |
Support |
|
• Cloud Upgrade |
Support |
|
• Network |
|
|
• Incoming Band |
40mbps |
|
• Outgoing Band |
20mbps |
|
• Ethernet |
1 RJ-45 10 /100 Mbps Self-Adaptive Ethernet Interface |
|
• Network Compatibility |
Http, Https, Tcp/Ip, Ipv4, Upnp, Rtsp, Udp, Smtp, Ntp, Dhcp, Ip Filter, Ddns, Ftp, P2p, Onvif 2.6 |
|
• Smart Phone |
Ios (Iphone, Ipad), Android (Phone, Pad) |
|
• Hard Disk |
|
|
• Sata |
1 Sata Interface |
|
• Capacity |
Up To 8TB Capacity For Each HDD |
|
• External Interface |
|
|
• Usb Interface |
Front Panel: 1 × Usb 2.0 Rear Panel: 1 × Usb 2.0 |
|
• General |
|
|
• Power Supply |
Dc12v/1.5a |
|
• Power Consumption |
≤10w (Without Hdd) |
|
• Working Environment |
-10°C~+55°C / 10%~90%Rh |
|
• Dimension (W×D×H) |
250x230x45mm |
|
• Weight |
≤1.5Kg |
|
• Certification |
CE, BIS |
|
• System Management |
|
|
• Mobile Software |
D-Link Smart Cctv App |
|
• Desktop Software |
Dsvs (D-Link Smart Video Surveillance) |
|
• System Requirement For Web Interface |
IE |
