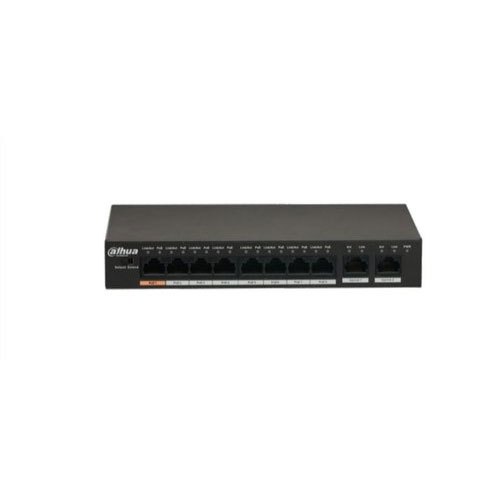

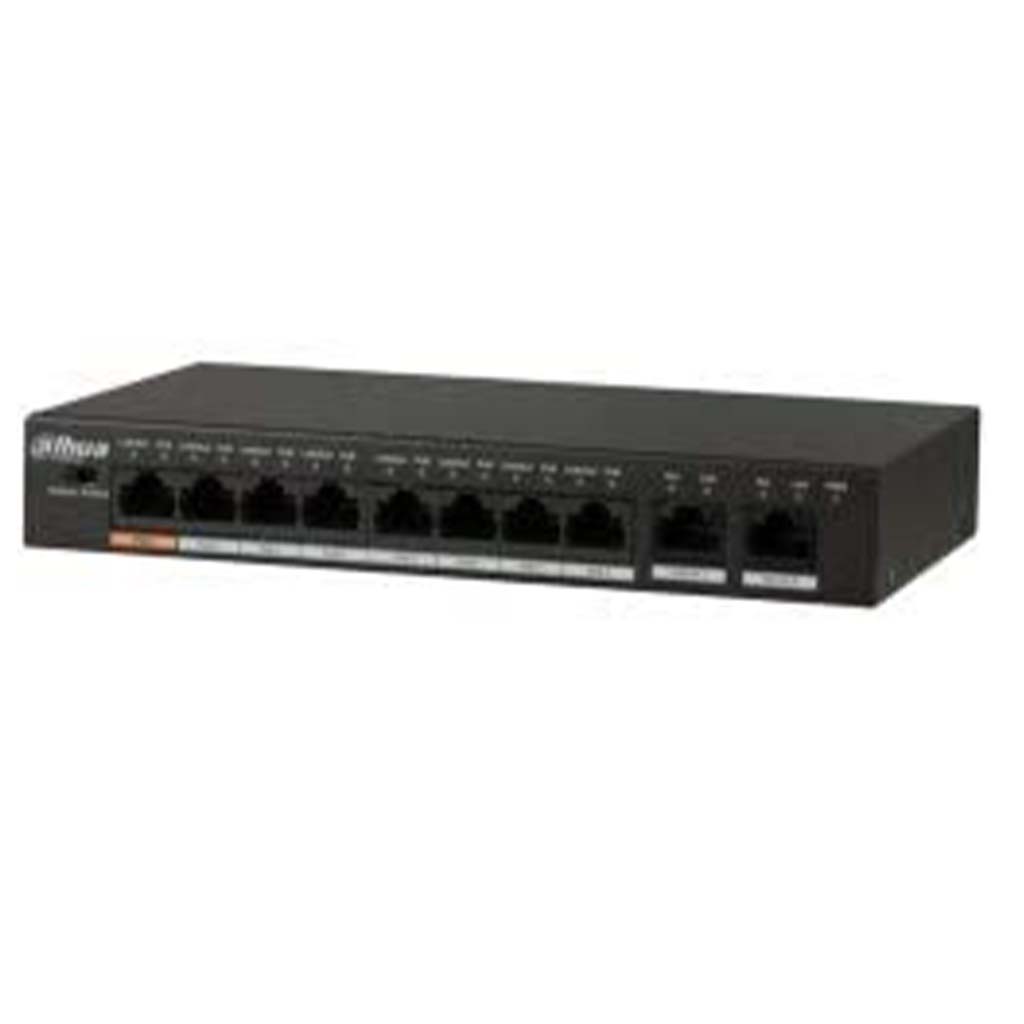

DAHUA 10 PORT SWITCH WITH 8 PORT POE AND 2 PORT UPLINK DH-PFS3010-8ET-65
Seller:
Maa Shanti Computer
- BRAND DAHUA
- TYPE POE SWITCH
- NO. OF PORTS 8 WITH 2 UPLINK
- COLOUR BLACK
- FOR ANY OTHER QUERY GO TO HELP OPTION ON OUR WEBSITE
- 5% DISCOUNT ON MINIMUM PURCHASE OF 2000 UP TO RS 250 ON UPI PAYMENT
- BANK OFFER: 5% INSTANT DISCOUNT ON ALL BANK DEBIT CREDIT CARD
- Product Code: #1960372
- Category: SECURITY
- PFS3010-8ET-96 Is An 8-Port Fast Ethernet Switch, Which Supports 250 Meters Long Distance Poe Transmission.
- It Provides 8*10/100Mbps Poe Ports And 2*10/100/1000Mbps Uplink Ports.
- The Product Is Equipped With Two Transmission Modes (Default/Extend), Which Are Controlled By DIP Switch.
- Layer Two Commercial Switch
- Supports Poe Power Management
- Supports Wall-Mount Installation
- Supports Anti-Theft Lock Hole
- MAC Auto Learning And Aging, MAC Address Capacity Is 16K
- Supports IEEE802.3, IEEE802.3u And IEEE802.3X Standards
- RJ45 Port Supports 10/100 Mbps Self-Adaptation
- Supports 250 Meters Long Distance Poe Transmission
- Conforms To IEEE802.3af And IEEE802.3at Power Supply Standard. Port 1 Supports Hi-Poe 60W Power Supply
|
· Brand |
Dahua |
|
· Model Name/Number |
PFS3010-8ET-96 |
|
· Switching Capacity |
5.6Gbps |
|
· Weight |
490g |
|
· Mac Table Size |
16K |
|
· Ethernet Ports |
8*10/100Mbps Poe Ports,2*10/100/1000Mbps Ports |
|
· Poe Power Consumption |
Port1 Less Than Equal To 60W,Port2-8 Less Than Equal To 30W,Total Less Than Equal To 96W |
|
· Poe PIN Assignment |
1,2,4,5 (V+),3,6,7,8 (V-) |
|
· Poe Power Management |
Support |
|
· Poe Protocol |
IEEE802.3af (Poe),IEEE802.3at (Poe+),Hi-Poe |
|
· Packet Forwarding Rate |
4.17Mpps |
|
· Packet Buffer Memory |
4Mb |
|
· Flow Control |
Enable By Default |
|
· Application Humidity |
5%~95% |
|
· Power |
DC 48~57V Power Adapter |
|
· Lightning Protection |
Common Mode 2KV Differential Mode 1KV |
|
· ESD Protection |
Air Discharge 8KV Contact Discharge 6KV |
|
· Working Temperature |
-10 Degreec~55 Degreec |
|
· Dimension(Wxdxh) |
190mmx100mmx30mm |
