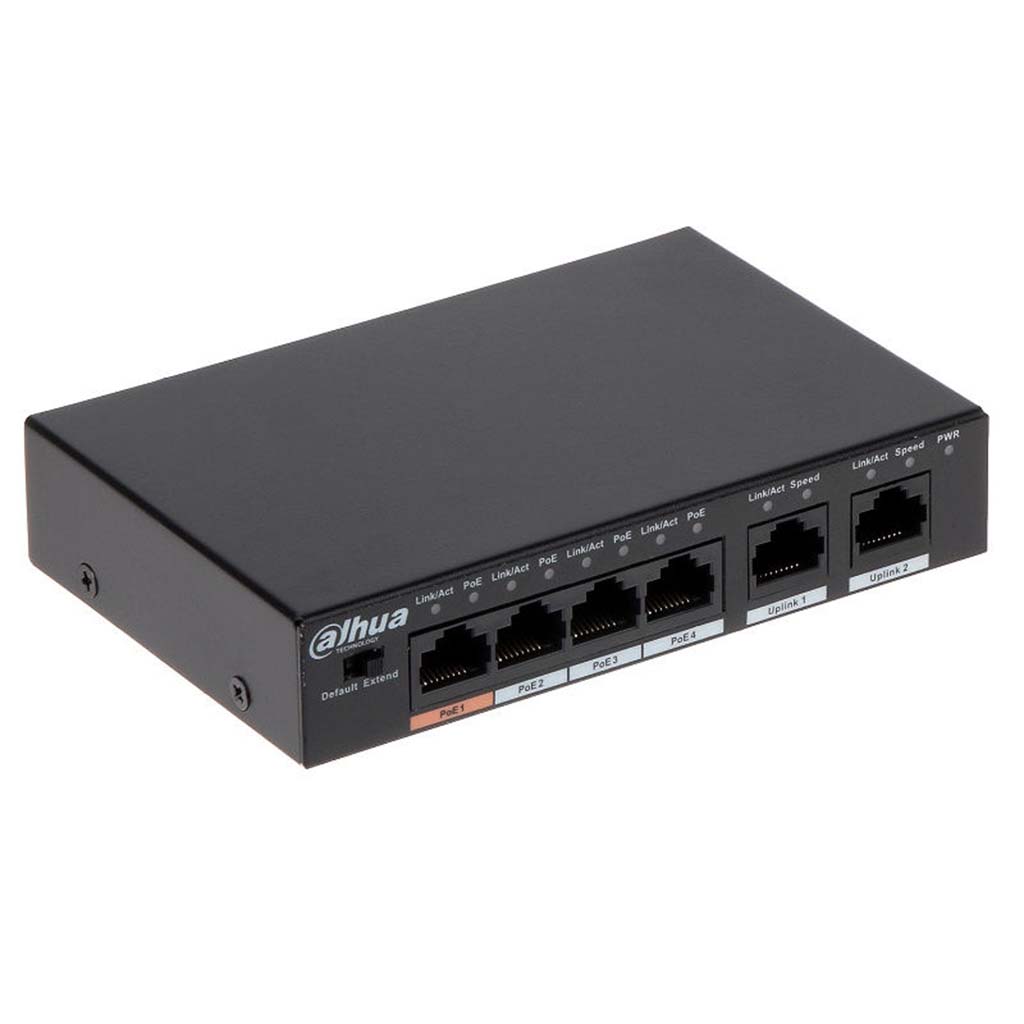

DAHUA DESKTOP POE SWITCH PFS3006-4ET-60
Seller:
Maa Shanti Computer
- BRAND DAHUA
- TYPE POE SWITCH
- NO. OF PORTS 4 PORTS WITH 2 UPLINK
- COLOR BLACK
- FOR ANY OTHER QUERY GO TO HELP OPTION ON OUR WEBSITE
- 5% DISCOUNT ON MINIMUM PURCHASE OF 2000 UP TO RS 250 ON UPI PAYMENT
- BANK OFFER: 5% INSTANT DISCOUNT ON ALL BANK DEBIT CREDIT CARD
- Product Code: #1960369
- Category : SECURITY
- 4-Port Fast Ethernet PoE Switch
- Layer two commercial switch
- Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
- MAC auto learning, aging, MAC address capacity is 2K
- Supports MDI/MDIX self-adaptation
- RJ45 port supports 10/100 Mbps self-adaptation
- Supports IEEE802.3af and IEEE803.3at power supply standards
- Adopts metal enclosure
- Supports Hi-PoE 60W
- Supports DC 48-57V power supply
|
Hardware |
|
|
· Ethernet Port |
4 |
|
· Optical Port |
0 |
|
· Ethernet Port Rate |
100 Mbps |
|
· Number Of Business Card Slots |
Port 1–4: 4 × RJ-45
10/100 M (Poe) |
|
· Power Supply |
53V DC |
|
· Operating Temperature |
–10°C To +55°C (+14°F To +131°F) |
|
· Operating Humidity |
5%–95% |
|
· Storage Temperature |
–20°C To +70°C (–4°F To +158°F) |
|
· Storage Humidity |
5%–95% |
|
· Power Consumption |
Idling: 1.5W |
|
· Performance |
|
|
· Switching Capacity |
1.80 Gbps |
|
· Packet Forwarding Rate |
0.89 Mpps |
|
· Packet Buffer Size |
1 Mbit |
|
· MAC Table Size |
2K |
|
· Communication Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
· Poe |
|
|
· Poe Standard |
IEEE802.3af/IEEE802.3at/Hi-Poe |
|
· Poe Power |
60W |
|
· Poe Power Consumption Management |
Yes |
|
· Poe Pin Assignment |
Poe/Hi-Poe: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
|
· Far Distance Mode |
250 M @10 Mbps |
|
· General |
|
|
· ESD |
Air Discharge:
8kv |
|
· Thunderproof |
Common Mode:
2kv |
|
· Net Weight |
0.3 Kg (0.66 Lb) |
|
· Gross Weight |
0.9 Kg (1.98 Lb) |
|
· Product Dimensions |
130 Mm × 85 Mm × 26 Mm (5.12" × 3.35" × 1.02") |
|
· Packaging Dimensions |
267 Mm × 239 Mm × 77 Mm (10.51" × 9.41" × 3.03") |
